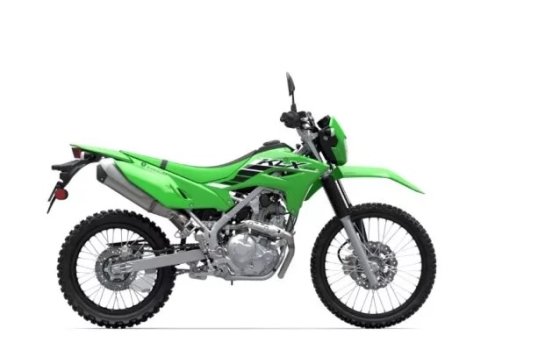

Kawasaki Klx 230s 2026

Basic Info

Manufacturer

Kawasaki

Product Name

KLX 230S 2026

Status

Release Date

2025

Type

Dual Sport Bike

Made In

Japan

Full Specs

Engine

4-stroke single, SOHC, air-cooled

Displacement

233cc

Bore x Stroke

67.0 x 66.0mm

Compression Ratio

9.4:1

Fuel System

DFI with 32mm throttle body

Ignition

TCBI Electronic Advance

Transmission

6-speed

Final Drive

Chain

Front Suspension / Wheel Travel

37mm telescopic fork/7.8 in

Rear Suspension / Wheel Travel

Uni-Trak linkage system and single shock with adjustable spring preload/8.7 in

Front Tire

2.75 x 21

Rear Tire

4.10 x 18

Front Brakes

Single 240mm (265mm ABS Model) petal disc with a dual-piston caliper (and ABS)

Rear Brakes

Single 220mm petal disc with single-piston caliper (and ABS)

Frame Type

Perimeter, high-tensile steel

Rake/Trail

24.6°/3.7 in

Overall Length

81.8 in.

Overall Width

33.2 in.

Overall Height

44.8 in.

Ground Clearance

9.4 in.

Seat Height

33.2 in

Curb Weight

291.0/293.2 lb 50-State Model

Fuel Capacity

2.0 gal.

Wheelbase

53.7 in
